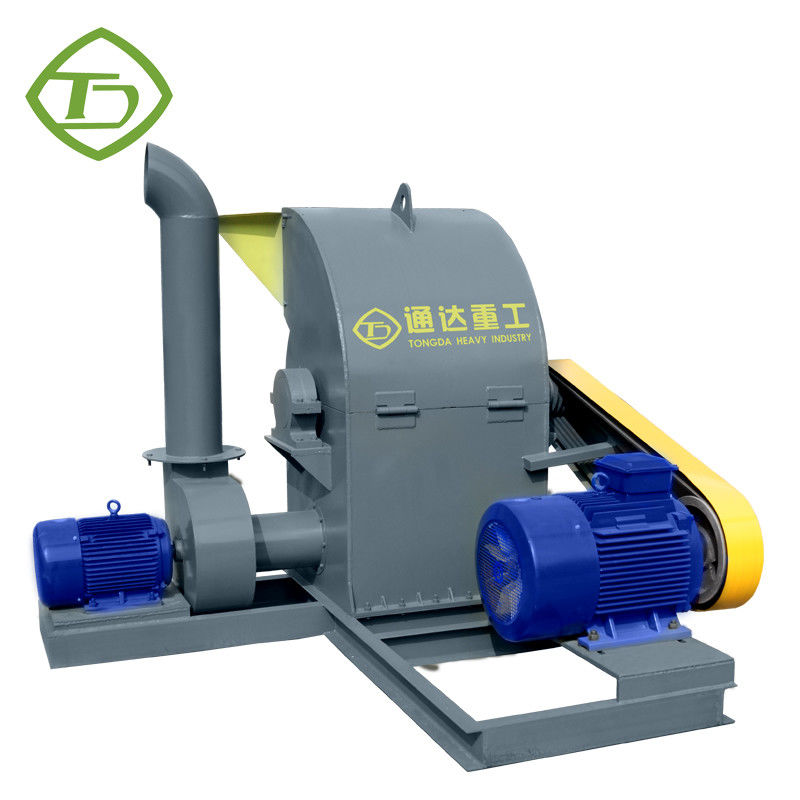

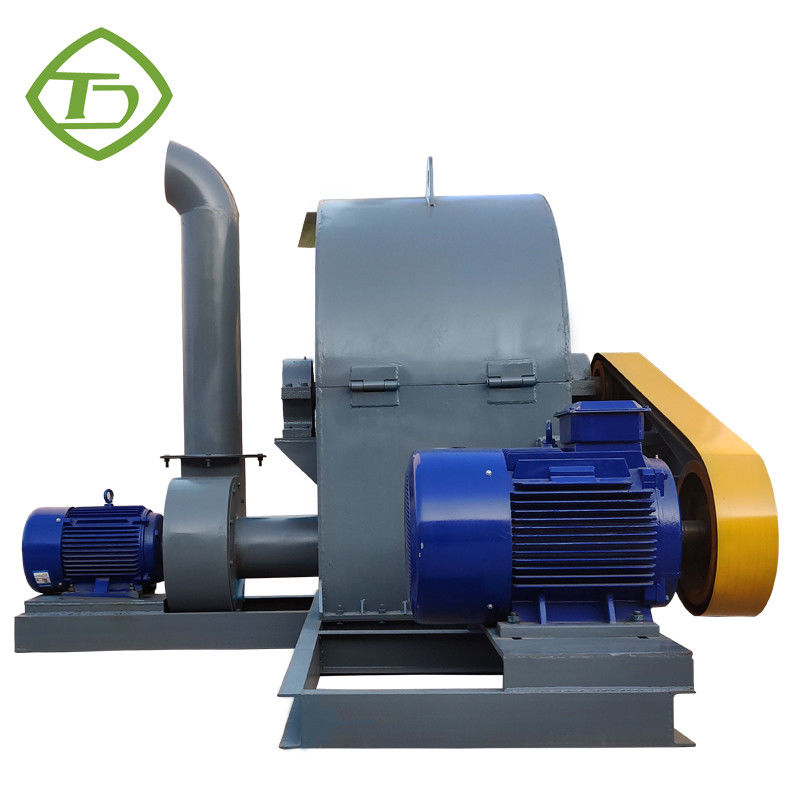

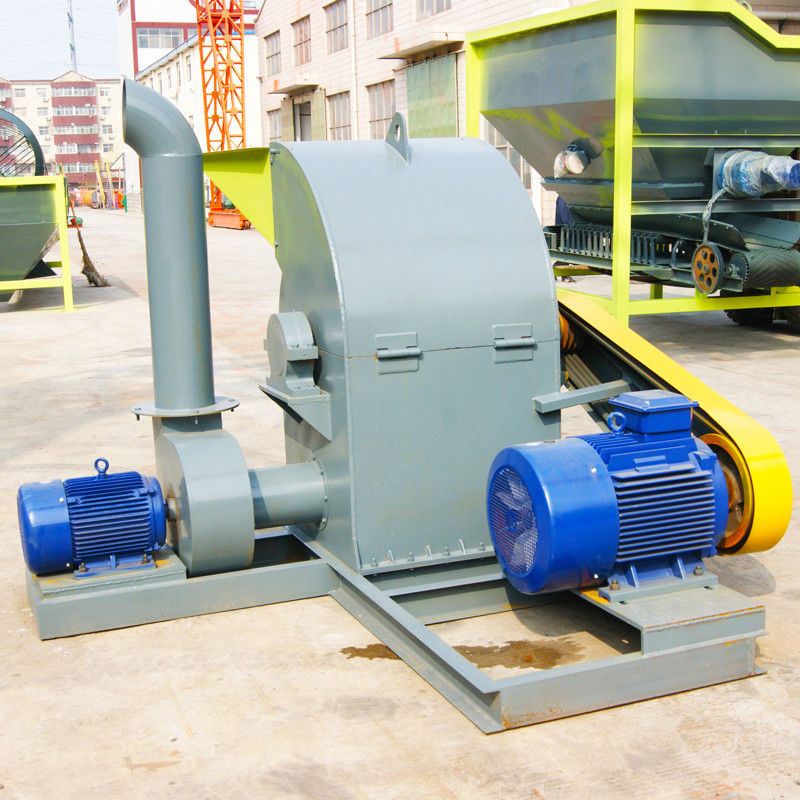

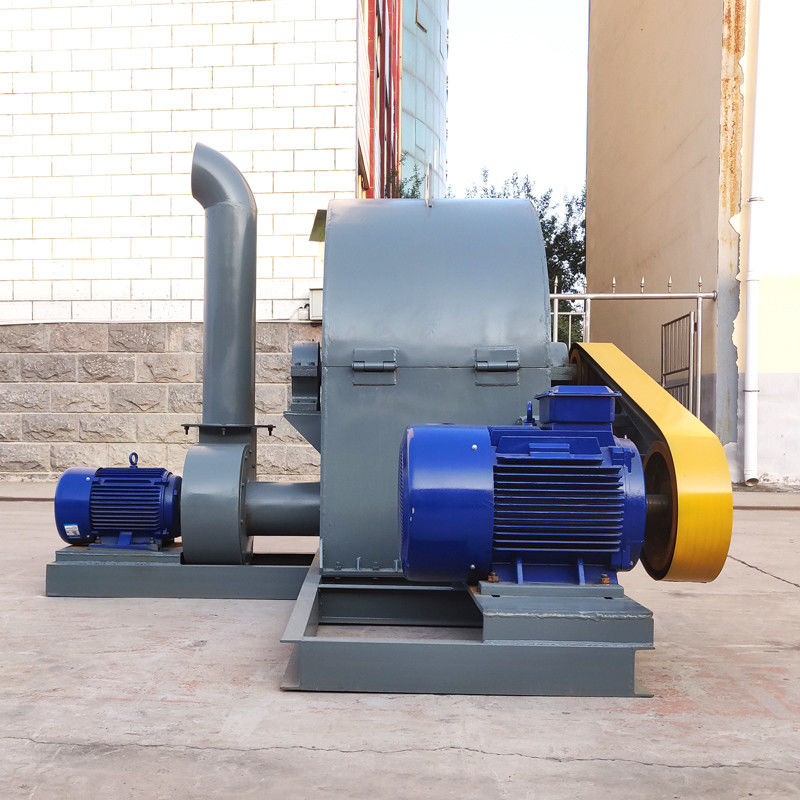

Animal Goat Cattle Feed Agriculture Wheat the Straw Bale Crusher Machine
Straw crusher can crush corn stalk, straw, peanut skin, bean stalk, firewood and other combustible crop waste stalks. The waste burning of these crop stalks is avoided, the environment is well protected, and renewable energy is effectively developed. The machine has reliable performance, simple operation and convenience. The equipment can produce a wide range of raw materials, which can be used for corn stalk, straw, peanut skin, bean stalk, firewood and other combustible crop waste stalks.
Features:
1. It is widely used for grinding for maize, grain sorghum, rice bran, rice straw, vine, maize straw, sorghum stalk, beanstalk, wheat straw etc;
2. Belt conveying,compact structure, easy to operate, all of our rotors passes accurate dynamic balancing test, which guarantee less vibration during running;
3. It is with aspiration system, easy to operate;
4. It is suitable for rice factories, flour factories, feed factories and so on.
| Model |
Power(kw) |
Capacity(m³/h) |
Dimensions(mm) |
| TDJGF-400 |
38 |
4 |
3850*950*1050 |
| TDJGF-600 |
22 |
3 |
3850*950*1050 |
| TDJGF-800 |
37 |
3.5 |
3850*950*1050 |
Tips for safe use of straw crusher:
1. Straw crusher shall be fixed on the ground and can be fixed with cement. If the working place is frequently changed, powder 2. After installation, carefully check whether it is installed in place and whether it is not firmly installed. Check whether the motor shaft is parallel to the crusher shaft and whether the tightness of the drive belt is appropriate.
3. Before starting, first turn the rotor by hand to check whether the operation is flexible and normal, and whether there is collision in the casing. 4. Do not change the pulley frequently to prevent the speed from being too high or too low.
5. After starting, it should idle for 2 to 3 minutes, and then start feeding after there is no abnormality.
6. The feeding shall be uniform. In case of noise, excessive temperature of bearing and body or outward spraying, stop the machine immediately for inspection and troubleshooting.
FAQ:
1. Are you trading company or manufacturer ?
We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training.
2. How long is the delivery time?
For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time.
3. Do you arrange shipment for the machines?
Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment.
4. How about your product after-sales service?
Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver.
5. What kinds of certificate you have?
ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements.
6. How to guarantee the quality and operation before loading?
We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
