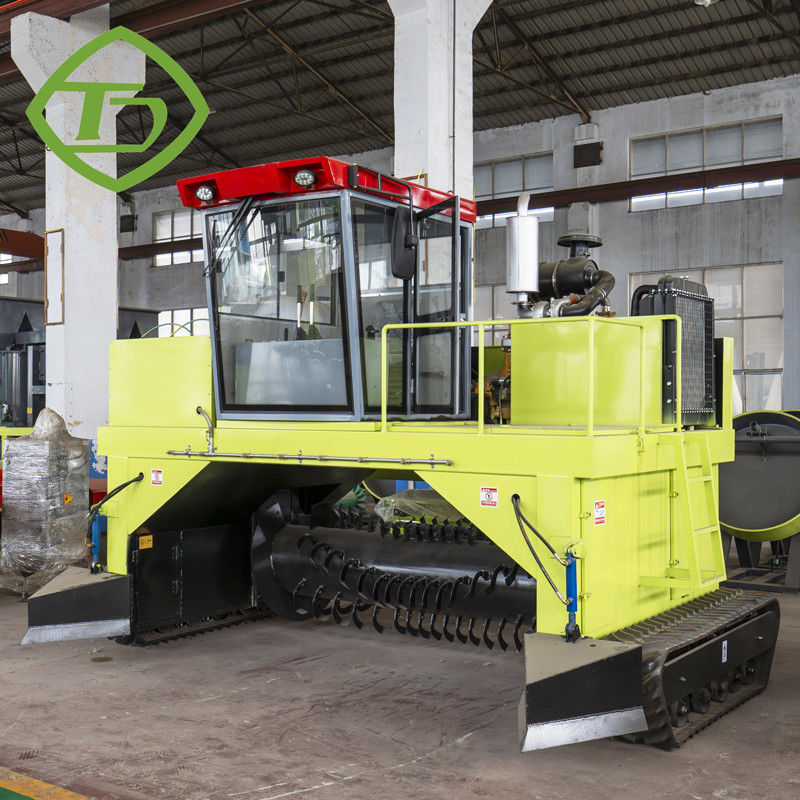

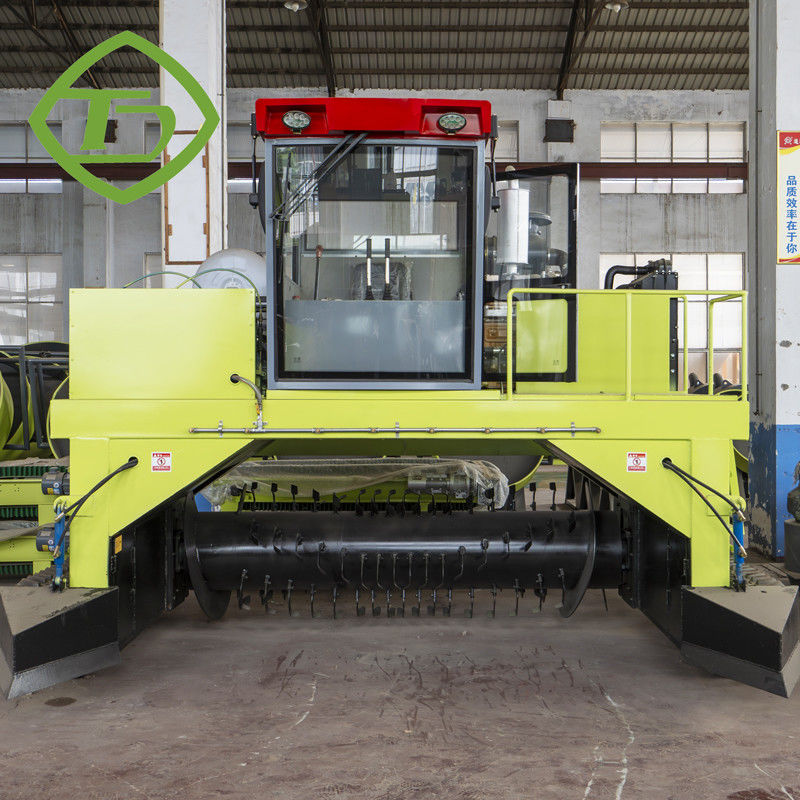

Organic Waste Crawler Type Compost Turner Full Hydraulic Chicken Manure Compost

Organic Waste Crawler Type Compost Turner Full Hydraulic Chicken Manure Compost

Full Hydraulic Crawler Compost Turner

Organic Waste Crawler Type Compost Turner

800mm Compost Windrow Turner

Place of Origin:

China

Brand Name:

TONGDA

Certification:

ISO,CE

Model Number:

TDLDF-2400

Contact Us
Request A Quote
Product Details
Features:
Efficient
Product Name:
Crawler Type Compost Windrow Turner
Turning Width:
2400mm-3000mm
Application:
Fertilizer Fermentation Equipment
Working Height:
600-800mm
Running Speed:
50m/min
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
According to customer requirements
Delivery Time
10-15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 units per month
Product Description

Automatic Chicken Manure Poultry Manure Crawler Compost Windrow Turner

Crawler Type Compost Windrow Turner Operation:
1. It can be controlled by both temperature and smell. If the temperature is higher than 70°C (about 158 degrees Fahrenheit), it should be turned over, and if you smell the smell of anaerobic ammonia, it should be turned over.

2. When turning the pile, the inner material should be turned outward, the outer material should be turned inside, the upper material should be turned downward, and the lower material should be turned upward. This ensures that the material is fully and evenly fermented.

Model
TDLDF-2400
TDLDF--2600
TDLDF--2800
TDLDF--3000
Turning Width(mm)
2400
2600
2800
3000
Turning Depth(mm)
600-1000
1000-1300
1100-1400
1300-1500
Windrow Spacing (mm)
800-1000
800-1000
800-1000
800-1000
Maximum Diameter of Material Particles (mm)



250

250

250

250
Horsepower(hp)
85
116
123
156
Working Knife Diameter(mm)
400
500
500
500
Working Speed (m/min)
6-10
6-10
6-10
6-10
Capacity(m3/h)
500-700
1000-1200
1100-1300
1300-1500

The process of making crawler type compost turner:

1.Livestock and poultry manure and other materials, organic domestic waste, sludge, etc. are used as fertilizer base materials, pay attention to the carbon-nitrogen ratio (C/N): Since composting materials have different C/N ratios, we need to use The C/N ratio is controlled at the 25~35 that the microorganism likes and the fermentation can proceed smoothly. The C/N ratio of the finished compost is usually 15~25.

2.After the C/N ratio is adjusted, it can be mixed and stacked. The trick at this point is to adjust the overall moisture content of the compost to 50-60% before starting. If the water content of livestock and poultry manure and other materials, domestic garbage, sludge, etc. is too high, you can add organic matter, relatively dry auxiliary materials that can absorb water, or use the method of backflow to put the dry fertilizer below to form strips, and put the containing Livestock and poultry manure and other materials, domestic garbage, sludge, etc. with a large amount of water are placed in the middle so that the water above can seep to the bottom and then be turned over.



Organic Waste Crawler Type Compost Turner Full Hydraulic Chicken Manure Compost 0

FAQ:

1. Are you trading company or manufacturer ?
We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training.
2. How long is the delivery time?
For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time.
3. Do you arrange shipment for the machines?
Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment.
4. How about your product after-sales service?
Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver.
5. What kinds of certificate you have?
ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements.
6. How to guarantee the quality and operation before loading?
We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
