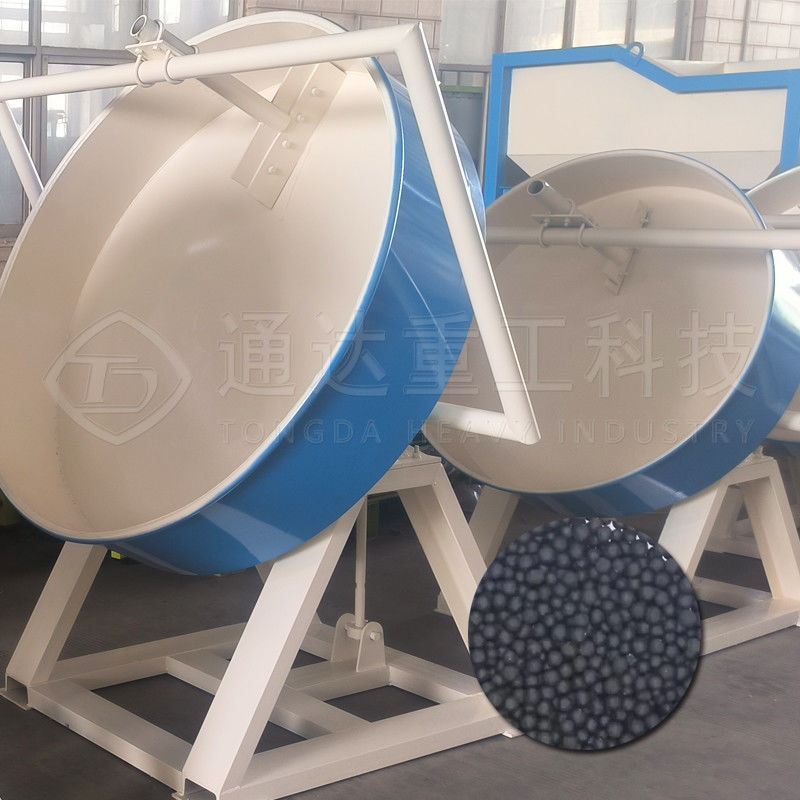

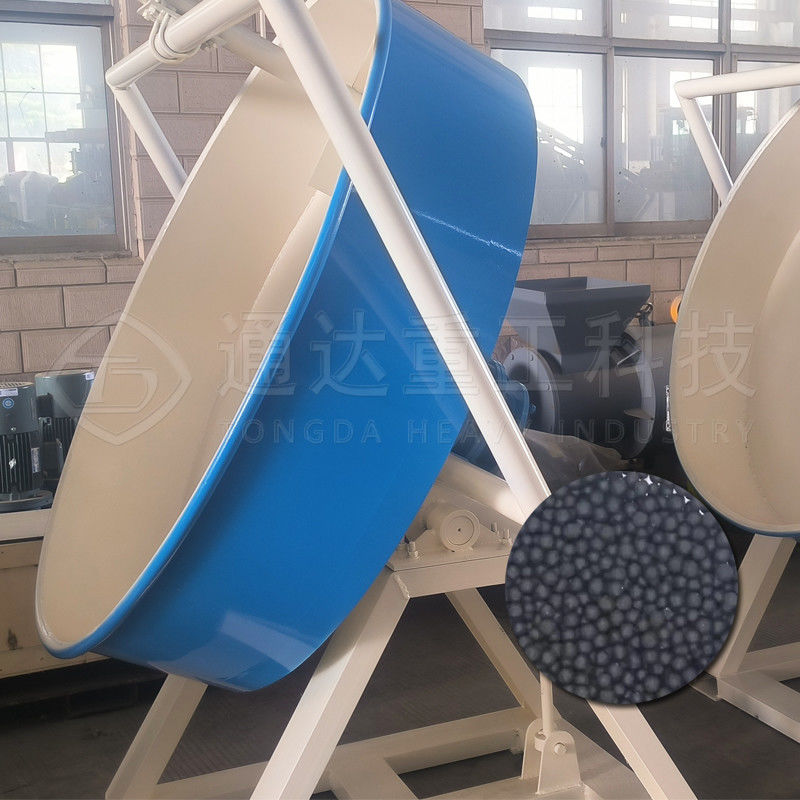

Disc Granulator Machine Bentonite Cat Litter Granules Making Machine
Disc granulator (also known as the ball plate) adopts the whole circular arc structure, and the granulating rate can reach more than 93%.
It has three discharging ports, which is convenient for discontinuous production, greatly reducing the labor intensity and improving
the labor efficiency. The reducer and motor use flexible belt drive to start smoothly, slow down the impact force and improve the service
life of the equipment. The plate bottom is strengthened by a plurality of radiant steel plates, which is durable and never deformed.
It is an ideal equipment for organic fertilizer and compound fertilizer, which is designed with thick, heavy and strong base,
so it has no fixed anchor bolts and smooth operation.
Working Principle:
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.
Characteristics of Performance:
1.High efficiency.
2.Long service life.
3.The plates are reinforced with a number of radiant steel plates, which are durable and never deformed.
4.The main gear of granulator adopts high frequency quenching technology, and its service life is doubled.
5.There is high strength fiberglass in the granulation pan making the machine durable.
6.Uniform granulation, high granulation rate, stable operation, durable equipment and long service life.
Parameters of disc granulator:
| Model |
Diameter of Disc(mm) |
Edge Height(mm) |
Rotary Speed(r/min) |
Motor Power(kw) |
Capacity(t/h) |
| TDYZ-500 |
500 |
200 |
32 |
0.55 |
0.02-0.05 |
| TDYZ-600 |
600 |
280 |
33.5 |
0.75 |
0.05-0.1 |
| TDYZ-800 |
800 |
200 |
21 |
1.5 |
0.1-0.2 |
| TDYZ-1000 |
1000 |
250 |
21 |
1.5 |
0.2-0.3 |
| TDYZ-1200 |
1200 |
250 |
21 |
1.5 |
0.3-0.5 |
| TDYZ-1500 |
1500 |
300 |
21 |
3 |
0.5-0.8 |
| TDYZ-1800 |
1800 |
300 |
21 |
3 |
0.8-1.2 |
| TDYZ-2000 |
2000 |
350 |
21 |
4 |
1.2-1.5 |
Advantages of disc granulator:
1. The rate of pellets is higher and little recycle.which make it more efficient in making granules.
2. Disc granulator requires less maintenance and have fewer parts that need placing.
3. It can be used widely for many industries,such as chemical industry,mining industry and agricultural industry.
The bottom of the granulation plate is strengthened with a number of radiant steel plates, which are durable and never deformed.We use the best steel to produce our products, so as to ensure the quality and longevity of our products.
FAQ:
1. Are you trading company or manufacturer ?
We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training.
2. How long is the delivery time?
For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time.
3. Do you arrange shipment for the machines?
Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment.
4. How about your product after-sales service?
Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver.
5. What kinds of certificate you have?
ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements.
6. How to guarantee the quality and operation before loading?
We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
