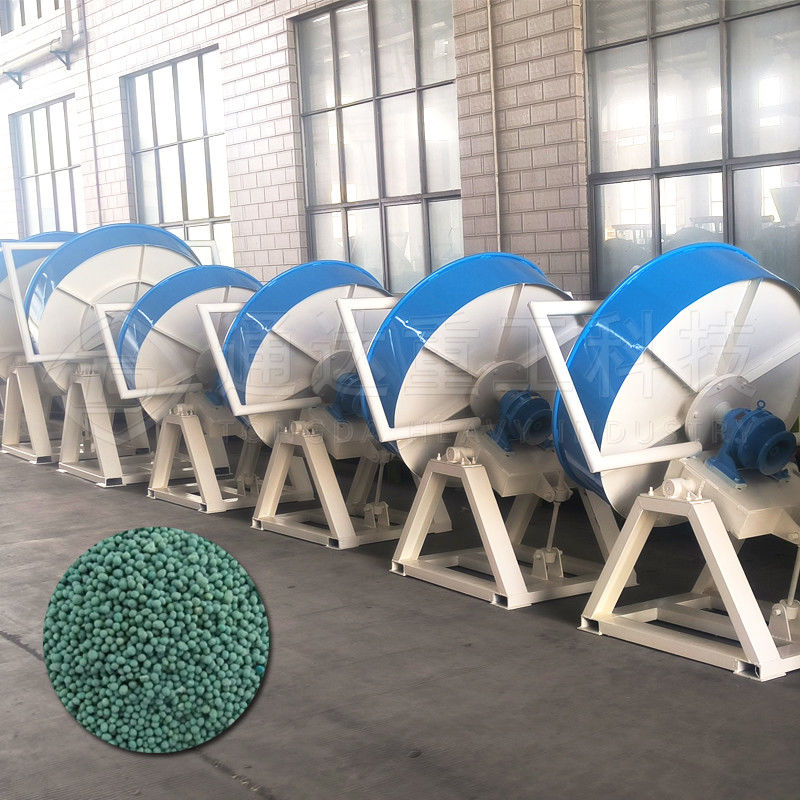

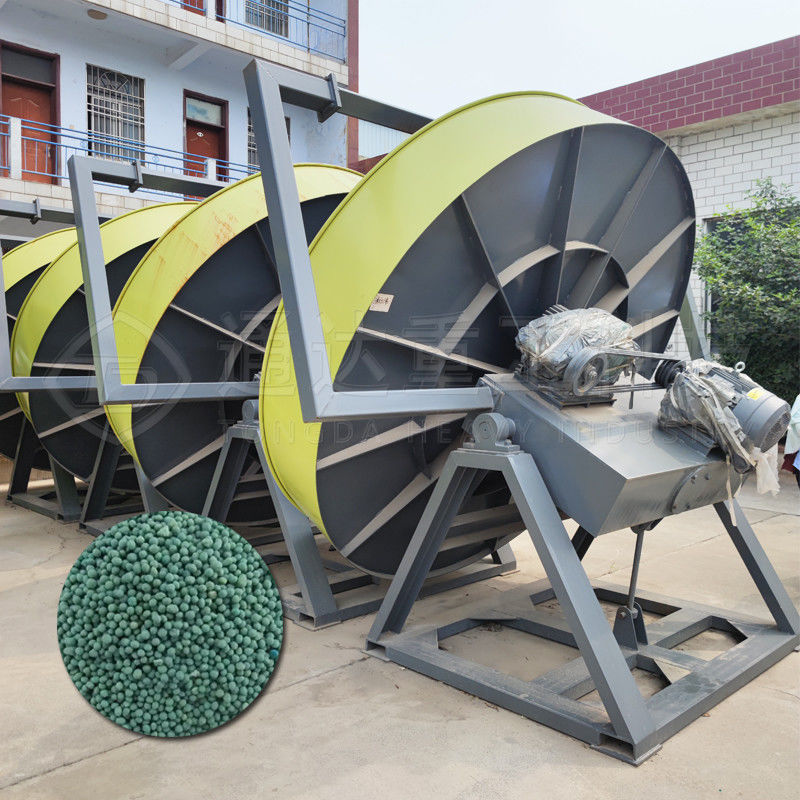

Compound Organic Fertilizer Disc Granulation Equipment Pan Granulator Machine
The disc is installed at a certain tilt angle. The material rolls rapidly in the disc,When it rises to the highest point,
it falls vertically under the obstruction of the scraper. During the rotation of the disk, the particles squeeze and roll
with the disk wall under the action of centrifugal force, then the powdery materials gather together to form a "cue ball" with the help of the surface tension of the liquid phase. As the "cue ball" increases, it slowly spherifies into complete particles,
ranging from small to large. the strength gradually increases and the granulation process is completed until the finished product
granularity overflows from the edge of the disc.
Characteristics of Performance:
1.The yield rate can reach more than 93%.
2.The reducer and motor are driven by flexible belts, which can start smoothly, reduce the impact force, and improve the service life of the equipment.
3.The bottom of the granulator plate is reinforced by a number of radiating steel plates, which is sturdy and durable, never deformed, thickened, heavy, and solid base design, no need for anchor bolts, and stable operation.
4.The service life is doubled. The granulation surface plate is lined with high-strength glass fiber reinforced plastic, which is anti-corrosion and durable.
5.The machine has the advantages of uniform granulation, high ball forming rate, stable operation, strong and durable equipment, and long service life.
Working Principle:
By adding water raw material powder can mix evenly, then being transported into the disk; as the rotation of disc, material inside gradually formed globular by rolling; After achieving the predetermined diameter, the granulation will be out of the pan to the next procedure again.
Parameters of disc granulator:
| Model |
Diameter of Disc(mm) |
Edge Height(mm) |
Rotary Speed(r/min) |
Motor Power(kw) |
Capacity(t/h) |
| TDYZ-500 |
500 |
200 |
32 |
0.55 |
0.02-0.05 |
| TDYZ-600 |
600 |
280 |
33.5 |
0.75 |
0.05-0.1 |
| TDYZ-800 |
800 |
200 |
21 |
1.5 |
0.1-0.2 |
| TDYZ-1000 |
1000 |
250 |
21 |
1.5 |
0.2-0.3 |
| TDYZ-1200 |
1200 |
250 |
21 |
1.5 |
0.3-0.5 |
| TDYZ-1500 |
1500 |
300 |
21 |
3 |
0.5-0.8 |
| TDYZ-1800 |
1800 |
300 |
21 |
3 |
0.8-1.2 |
| TDYZ-2000 |
2000 |
350 |
21 |
4 |
1.2-1.5 |
Advantages of disc granulator:
1. The rate of pellets is higher and little recycle.which make it more efficient in making granules.
2. Disc granulator requires less maintenance and have fewer parts that need placing.
3. It can be used widely for many industries,such as chemical industry,mining industry and agricultural industry.
The bottom of the granulation plate is strengthened with a number of radiant steel plates, which are durable and never deformed.We use the best steel to produce our products, so as to ensure the quality and longevity of our products.
FAQ:
1. Are you trading company or manufacturer ?
We are a manufacturer with a history over 40 years and have realized one-stop service for design, manufacture, installation, debugging and technical training.
2. How long is the delivery time?
For standard machines or Components, it would be 5-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be appointment time.
3. Do you arrange shipment for the machines?
Yes, we will do that. For FOB or CIF price, we will arrange shipment for you. For EXW price, we will assist you in arranging shipment.
4. How about your product after-sales service?
Normally we provide video and written technical support. If necessary, our engineers can also provide on-site service. Our product accessories can be selected according to the actual needs of the customer to choose the most appropriate way to deliver.
5. What kinds of certificate you have?
ISO 9001: 2015 SGS and we can make other certificates according to customers' detailed requirements.
6. How to guarantee the quality and operation before loading?
We have our own quality control department and have advance quality control stystem while from raw materials to finished products. All the machines and production lines shall be 100% checked and tested before delivery.
